SWM Nomader Hybrid Ult 1000cc Hybrid Side by Side UTV

MAIN FEATURES

Vehicle Frame Engine Suspension Capacity Intelligent Options

Enhanced Durability

SWM SXS Nomader Hybrid ULT is engineered for the long haul with its robust, high-yield strength alloy steel frame. This fortified construction provides unmatched resilience, giving you absolute confidence to conquer the most challenging terrains.

Dominant Hybrid Performance

Unleash unprecedented power with the Nomader Hybrid ULT's class-leading 210 hp gas electric hybrid system. It expertly merges the immediate thrust of electric torque with the enduring force of a gasoline engine, ensuring explosive acceleration and the capability to effortlessly tackle any demanding task.

Seamless E-Controls

Experience effortless driving with the hybrid SXS E-SHIFT system, providing instantaneous gear changes at your command. For added peace of mind, the vehicle automatically engages Park when powered off, ensuring it's always secure.

Maximize Your Hauling

Engineered to handle serious loads. The Nomader Hybrid ULT boasts a 1,000 lb (454 kg) cargo bed capacity. Its impressive 2,500 lb (1134 kg) towing power means you can confidently pull trailers for any work or adventure. Get ready to tackle bigger jobs and bring more gear with ease.

Intelligent Control

Packed with cutting-edge features for an optimized hybrid side-by-side driving experience. Enjoy enhanced safety and handling with Turf mode, anti-theft, active descent control, and intelligent throttle. Combined with engine braking, three drive modes, and three-mode EPS, you get precise command in every situation.

SUITES & SPECS

NOMADER HYBRID ULT

Intelligent Electronic Throttle
Triple-mode Electronic Power Steering (EPS)
7 in. TFT display
Three Power Modes
26-inch Tires, 14-inch Aluminum Wheels with Beadlock
Front & Rear Central-mounted Daytime Running Lights (DRL)
Horn, Side Mirrors, Rearview Mirror
Front Suspension with Anti-Roll Bar
Intelligent Engine Braking

COMPARE

NOMADER CREW HYBRID ULT

Intelligent Electronic Throttle
Triple-mode Electronic Power Steering (EPS)
7 in. TFT display
Three Power Modes
26-inch Tires, 14-inch Aluminum Wheels with Beadlock
Front & Rear Central-mounted Daytime Running Lights (DRL)
Horn, Side Mirrors, Rearview Mirror
Front Suspension with Anti-Roll Bar
Intelligent Engine Braking

COMPARE

NOMADER HYBRID ULT

Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY

X NOMADER HYBRID ULT

Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY

NOMADER HYBRID ULT VIEW DETAILED PARAMETER CONFIGURATION

999 cc
Hybrid Power, liquid cooled
Ground Clearance
310 mm
3-Seat / 6-Seat
Selectable 2WD/4WD \
with front differential lock
DOWNLOAD SPEC SHEET

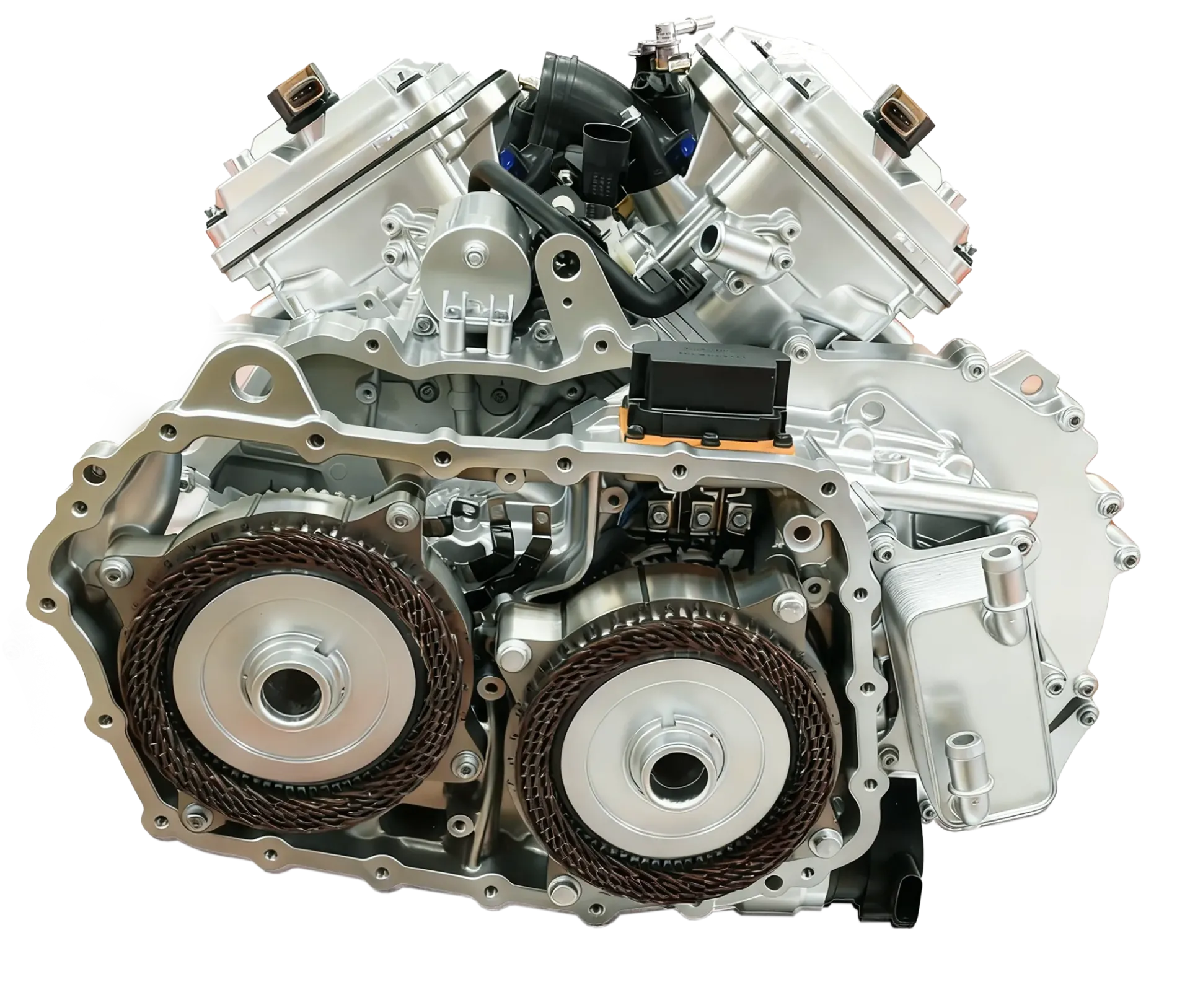

Type 210 HP / 212 N·m (156 lb-ft), Gas Engine+ E-motor, Liguid Cooled

Displacement 999 cc

Max Power / Torque 210 HP / 212 N·m

Fuel Supply BOSCH EFI

Transmission CVT L / H / N / R / P

Drivetrain Selectable 2WD/4WD with front differential lock

Front Suspension Double A-arm 9.5 in. (241mm) travel

Rear Suspension Double A-arm 9 in. (231mm) travel

Shock Absorber oil shock absorber

Front Tires 28 x 9 x 14 in.

Rear Tires 28 x 11 x 14 in.

Wheels Alu.

Brake /

L x W x H 114.2 x 57.9 x 79.2 in (2900 x 1470 x 2012 mm)

Wheel Base 109 in. (277 cm)

Ground Clearance 12 in. (310 cm)

Estimated Dry Weight* 1565 lb (710 kg)

Towing Capacity 1,830 lb (830 kg)

Cargobox Capacity 450 kg

Fuel Capacity /

Battery 12 V / 20 Ah

Gauge 7 in. TFT display

Power Steering EPS

Lighting LED headlights and taillights

Winch /

Seat 3/6 Standard

Protection /

Manufacturer Limited Warranty 6-month SWM Limited warranty

NOMADER CREW HYBRID ULT

Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY

X NOMADER CREW HYBRID ULT

Overview ENGINE & TRANSMISSION CHASSIS & HANDLING DIMENSIONS & CAPABILITIES FEATURES WARRANTY

NOMADER CREW HYBRID ULT VIEW DETAILED PARAMETER CONFIGURATION

999 cc, Gas Engine+ E-motor
DOHC, Liquid Cooled
Ground Clearance
310 mm
Passenger Allowed
Options: 6-Seat
Selectable 2WD/4WD
with front differential lock
DOWNLOAD SPEC SHEET

Type 210 HP / 212 N·m (156 lb-ft), Gas Engine+ E-motor, Liquid Cooled

Displacement 999 cc

Max Power / Torque 210 HP / 212 N·m

Fuel Supply BOSCH EFI

Transmission CVTech CVT L / H / N / R / P

Drivetrain Selectable 2WD/4WD with front differential lock

Front Suspension Double A-arm 9.5 in. (241mm) travel

Rear Suspension Double A-arm 9 in. (231mm) travel

Shock Absorber oil shock absorber

Front Tires 28 x 9 x 14 in.

Rear Tires 28 x 11 x 14 in.

Wheels 14 in. Aluminum

Brake /

L x W x H /

Wheel Base /

Ground Clearance 12 in. (310 cm)

Estimated Dry Weight* /

Towing Capacity 1,830 lb (830 kg)

Cargobox Capacity 450 kg

Fuel Capacity /

Battery 12 V / 20 Ah

Gauge 7 in. TFT display

Power Steering EPS

Lighting LED headlights and taillights

Winch 3500 lbs with synthetic rope

Seat 6 Standard

Protection N/A

Manufacturer Limited Warranty 2- Year Limited Factory Warranty
